Description
Specifications
| SHMGWL-28450USTDAISO | |
|---|---|
| WIDTH: | 2.8m |
| HITCH: | ISO / HI-VIS |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 1240 Kg |
| DIMENSIONS: | 2850 X 1150 X 1050 |
| TON RANGE: | 10–15T |
| SHMGWL-28450USTDACTIT | |
|---|---|
| WIDTH: | 2.8m |
| HITCH: | CAT IT |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 1255 Kg |
| DIMENSIONS: | 2850 X 1150 X 1050 |
| TON RANGE: | 10–15T |
| SHMGWL-30450USTDAISO | |
|---|---|
| WIDTH: | 3.0m |
| HITCH: | ISO / HI-VIS |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 1325 Kg |
| DIMENSIONS: | 3050 X 1150 X 1050 |
| TON RANGE: | 14–20T |
| SHMGWL-30450USTDAISO | |
|---|---|
| WIDTH: | 3.0m |
| HITCH: | CAT IT |
| STEEL TINE GRADE: | XD450 Abrasion Resistant |
| WEIGHT: | 1275 Kg |
| DIMENSIONS: | 3050 X 1150 X 1050 |
| TON RANGE: | 14–20T |
Key Features and Benefits
- Heavy Duty Build
- Massive jaw opening
- Wear Resistant 25mm XD450 Abrasion Resistant Teeth
- Independent claws for uneven loads
- Locking Valve as standard
- Heavy Duty Integrated Hitch
- Motion stops on claw
- Locally made hydraulic cylinders
- 100% Australian Made and Fabricated

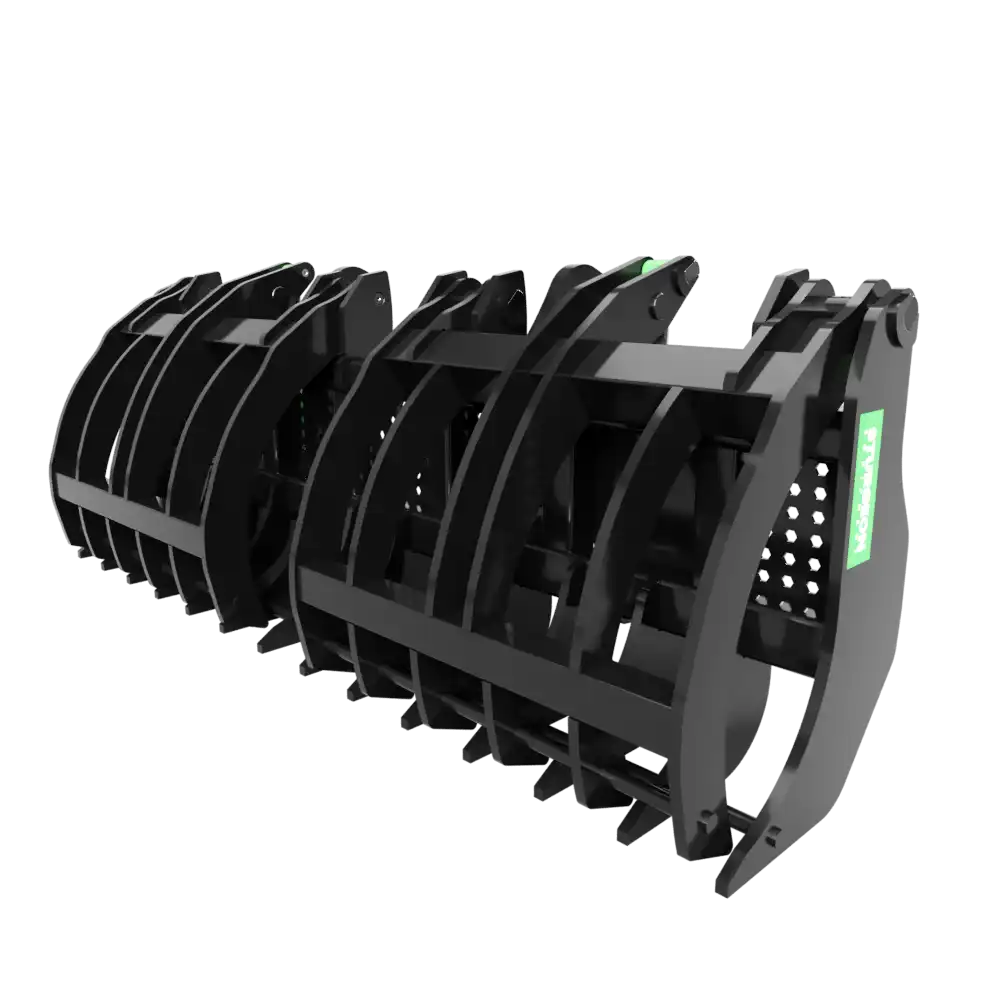

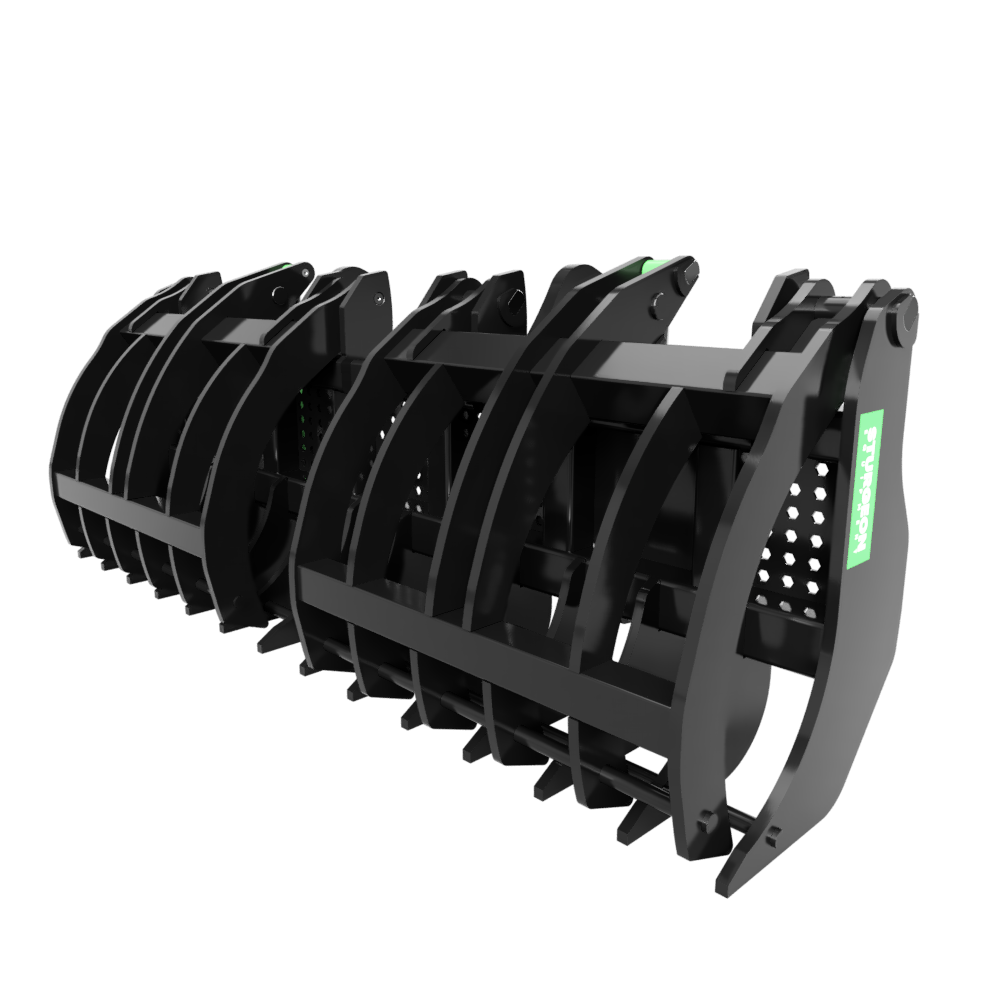

Heavy Duty Build
Designed for harsh working conditions. Built with heavy tube and 25mm thick high grade steel plate, there won’t be many loads that this grab can’t tackle.

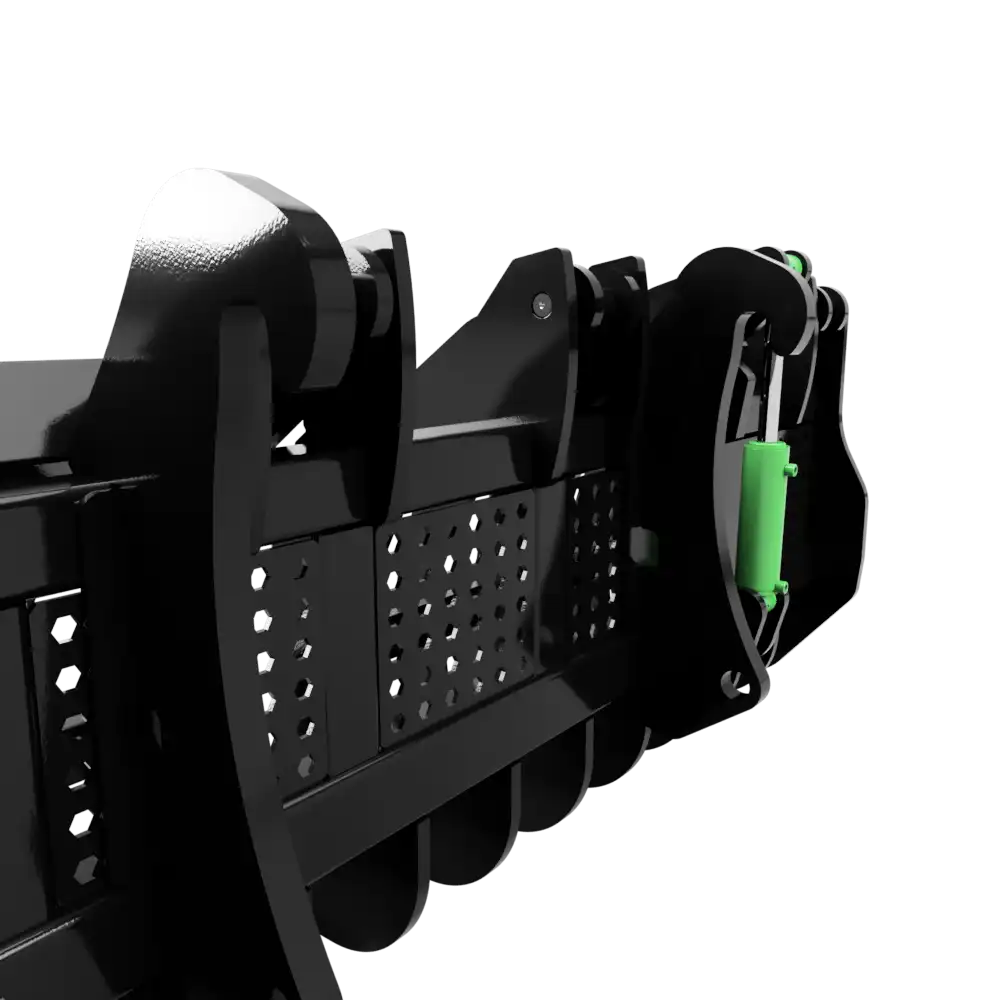

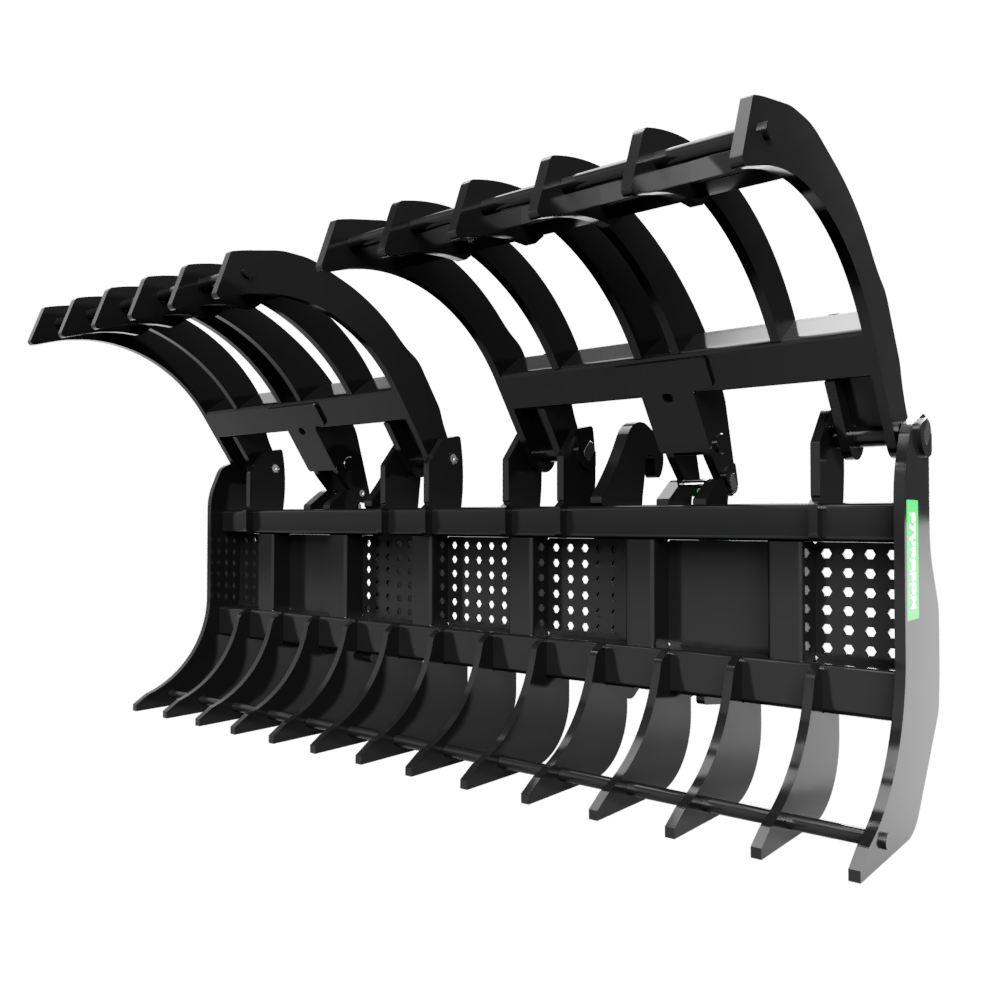

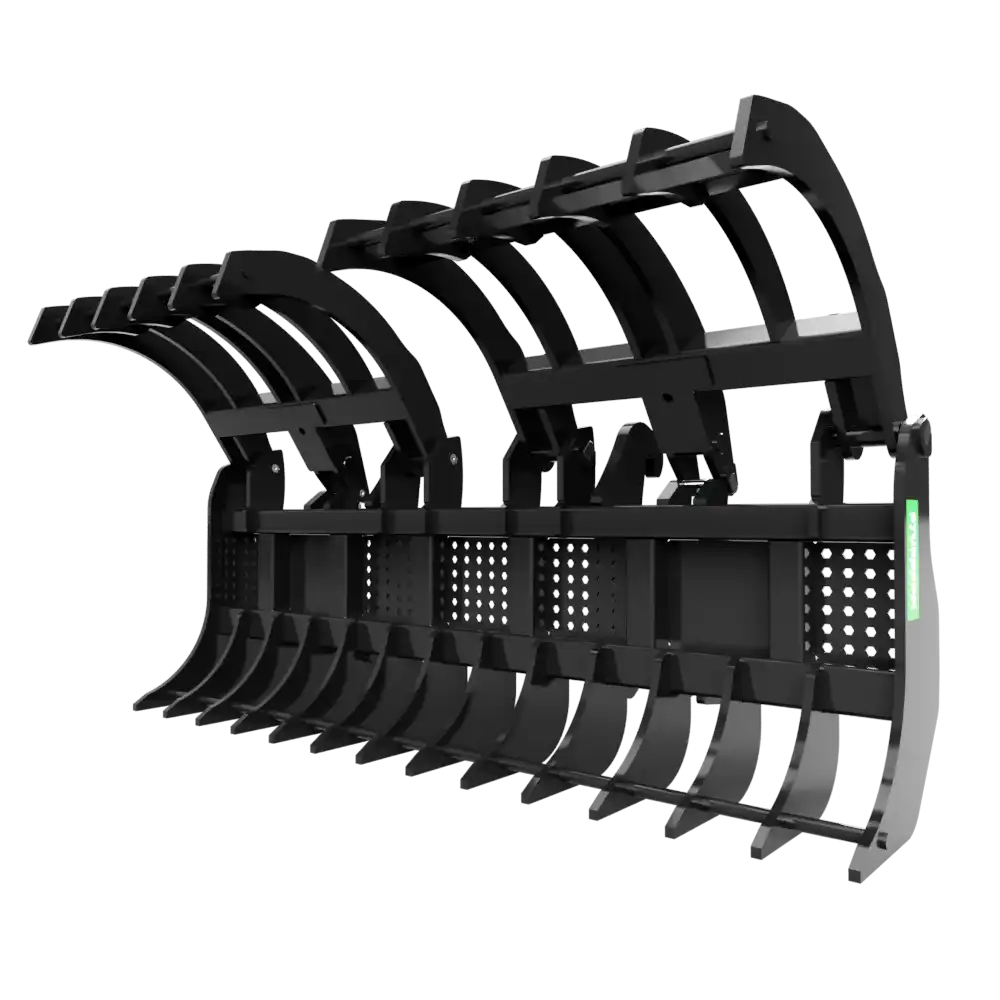

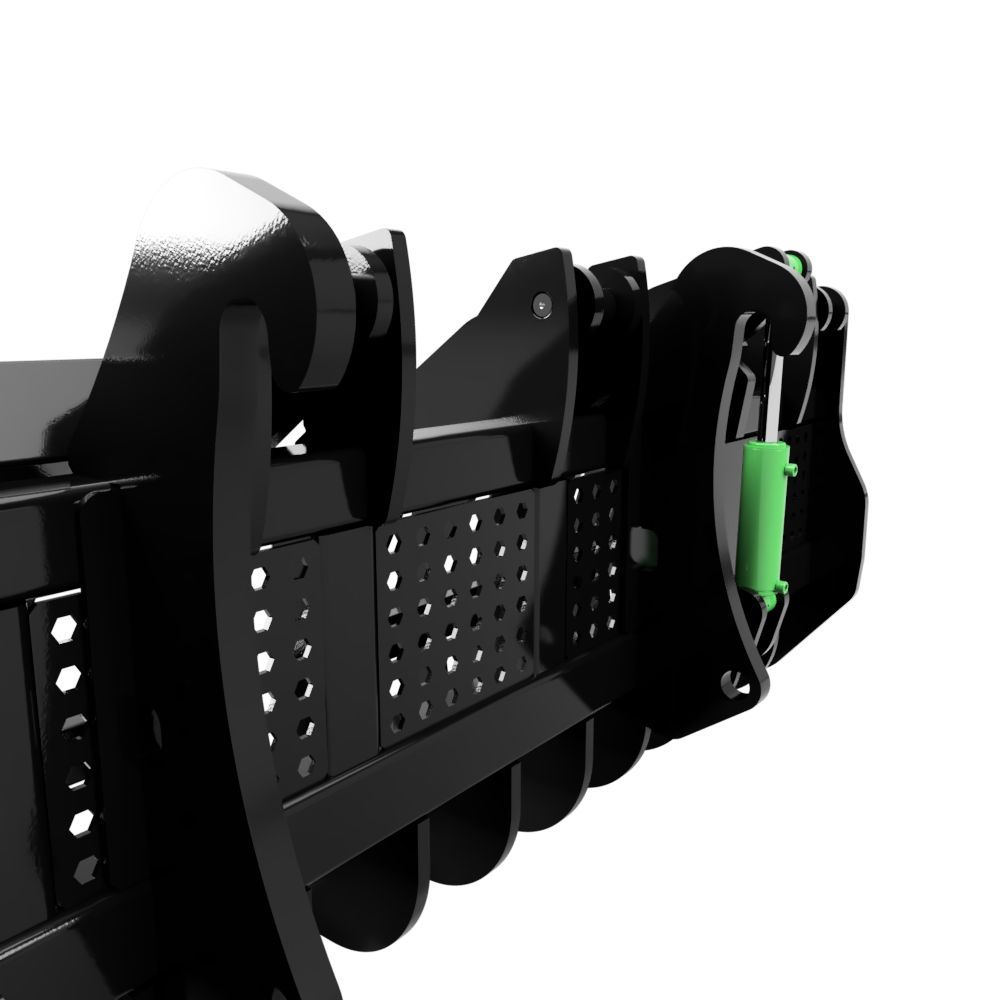

Massive jaw opening
With the massive jaw opening of 1.5m and bottom tine length of 400mm, there won’t be much that you can’t handle.

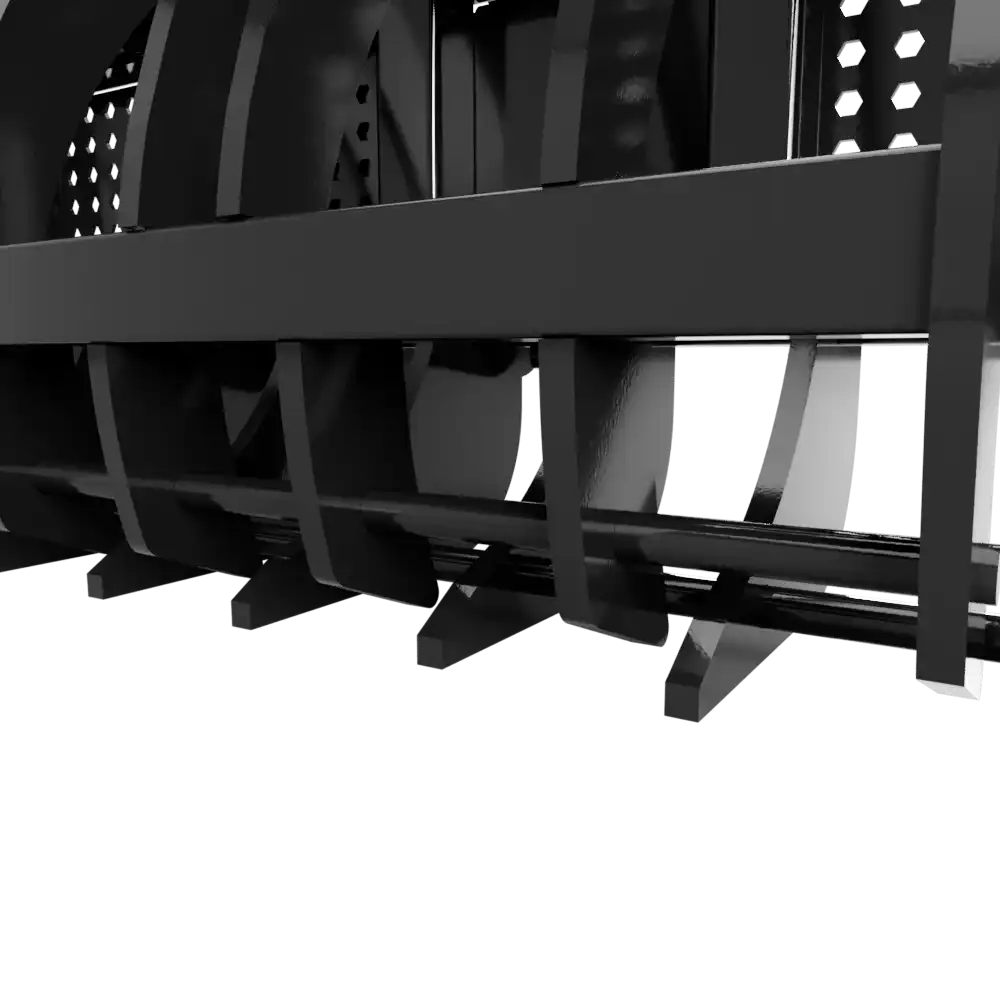

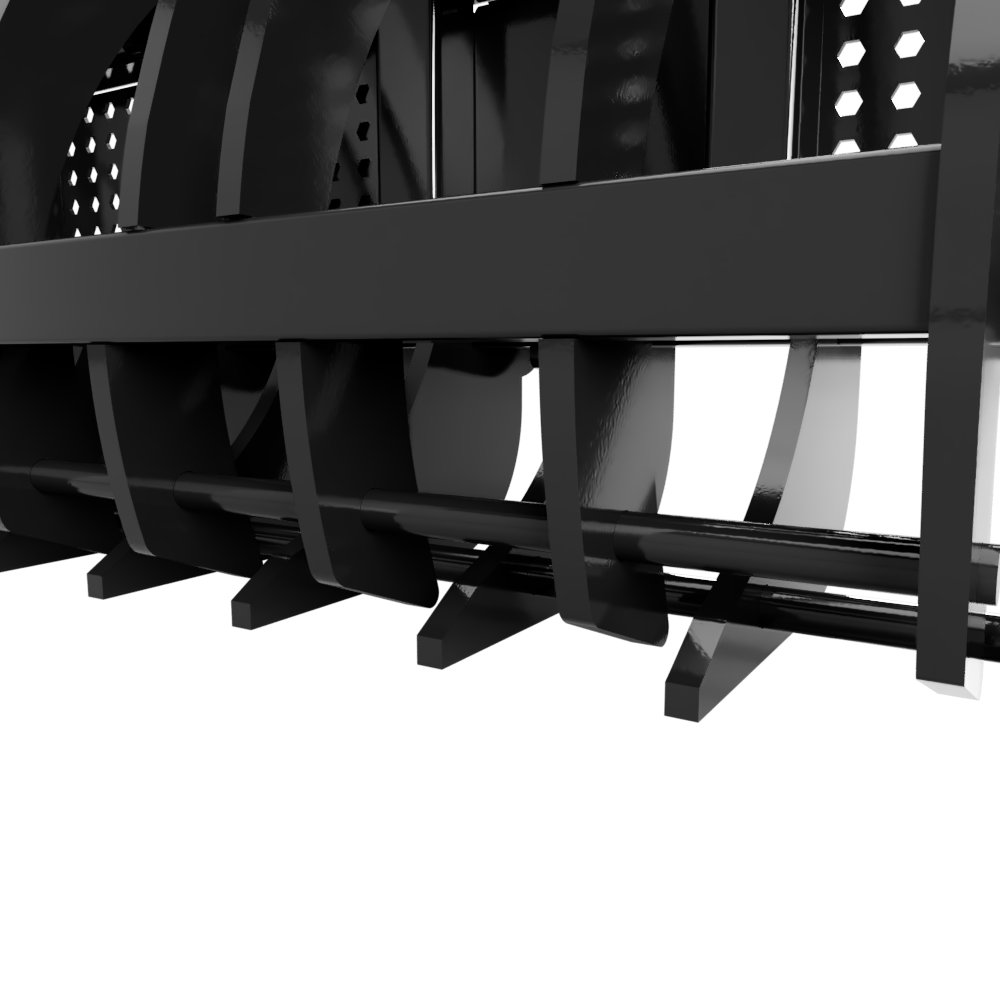

Wear Resistant 25mm XD450 Abrasion Resistant Teeth
For life-long performance in the harshest of conditions. The 25mm XD450 teeth stand up to everything you can put them through. From abrasive rock work, running through the ground all day and heavy timber work – they will keep their shape every single time.

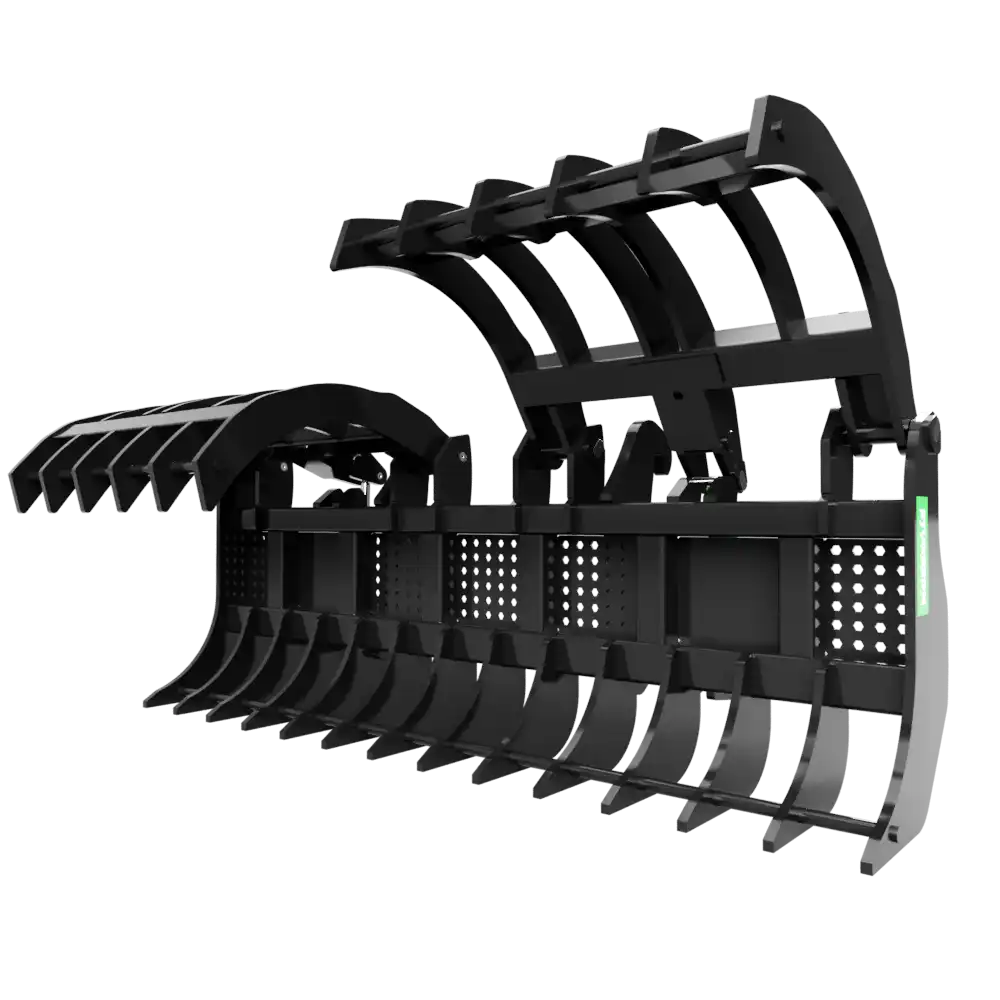

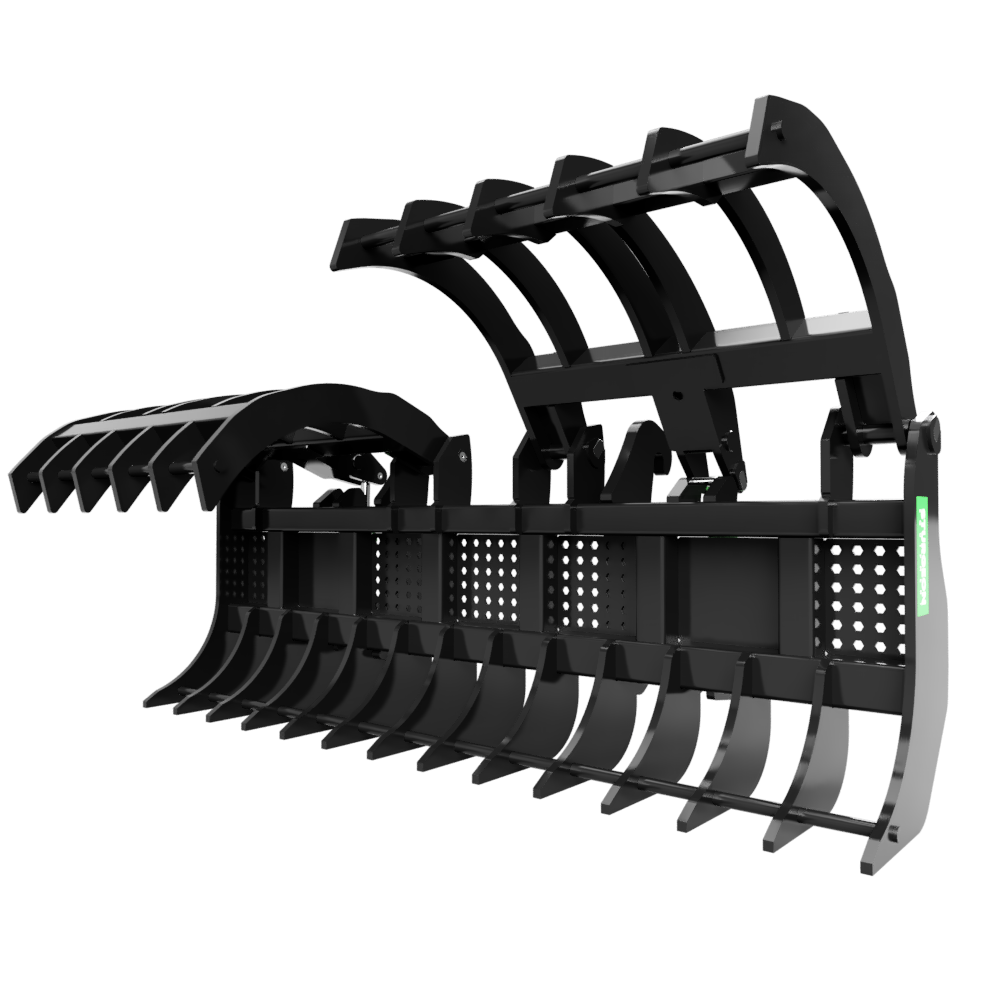

Independent claws for uneven loads
Completely independent motion of both claws. Perfect for loads that are random size and shape or logs that change diameter from one end to the other. Get the perfect grip every single time.

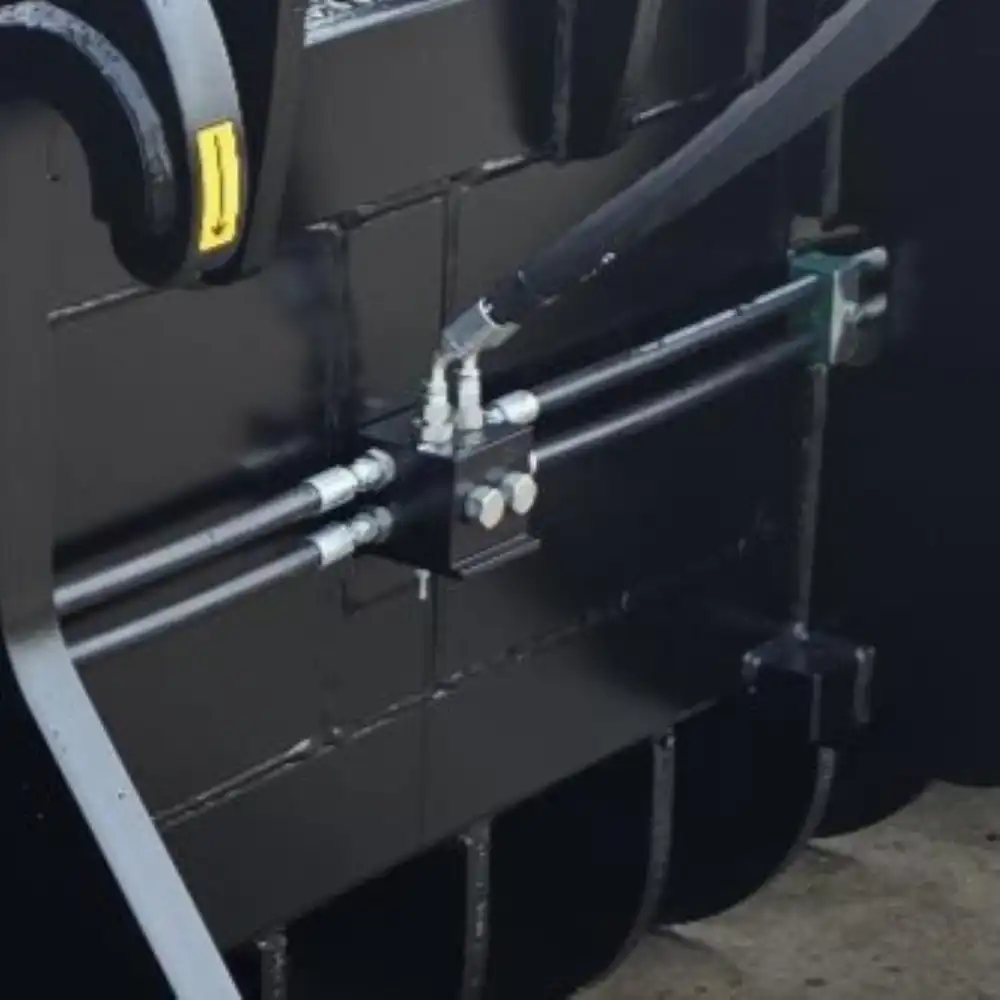

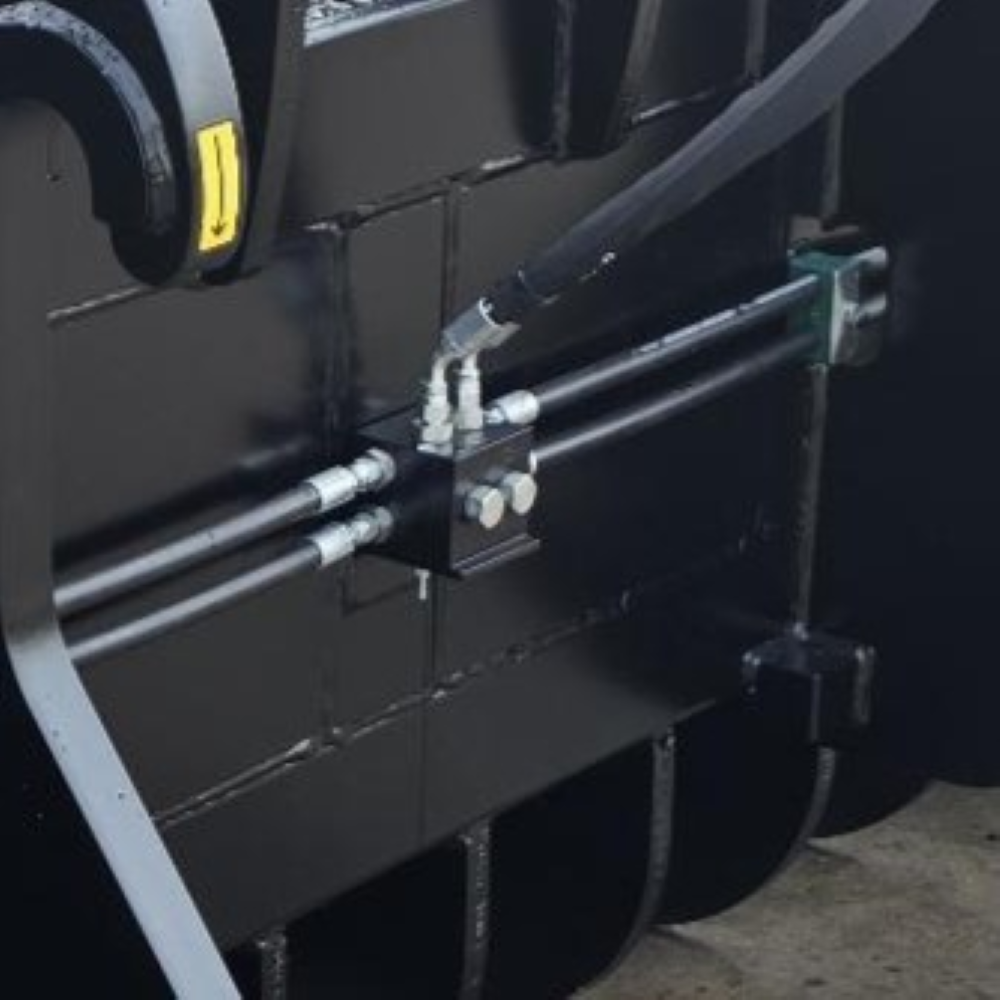

Locking Valve as standard
Pro level feature as standard. No add ons or extra charges. Australian made hydraulic lock valve fitted for your peace of mind when clamping on large loads.
Heavy Duty Integrated Hitch
No off the shelf hitch pickups used here. We design and profile-cut our own. Perfectly integrated and reinforced – you can have confidence in your attachment.

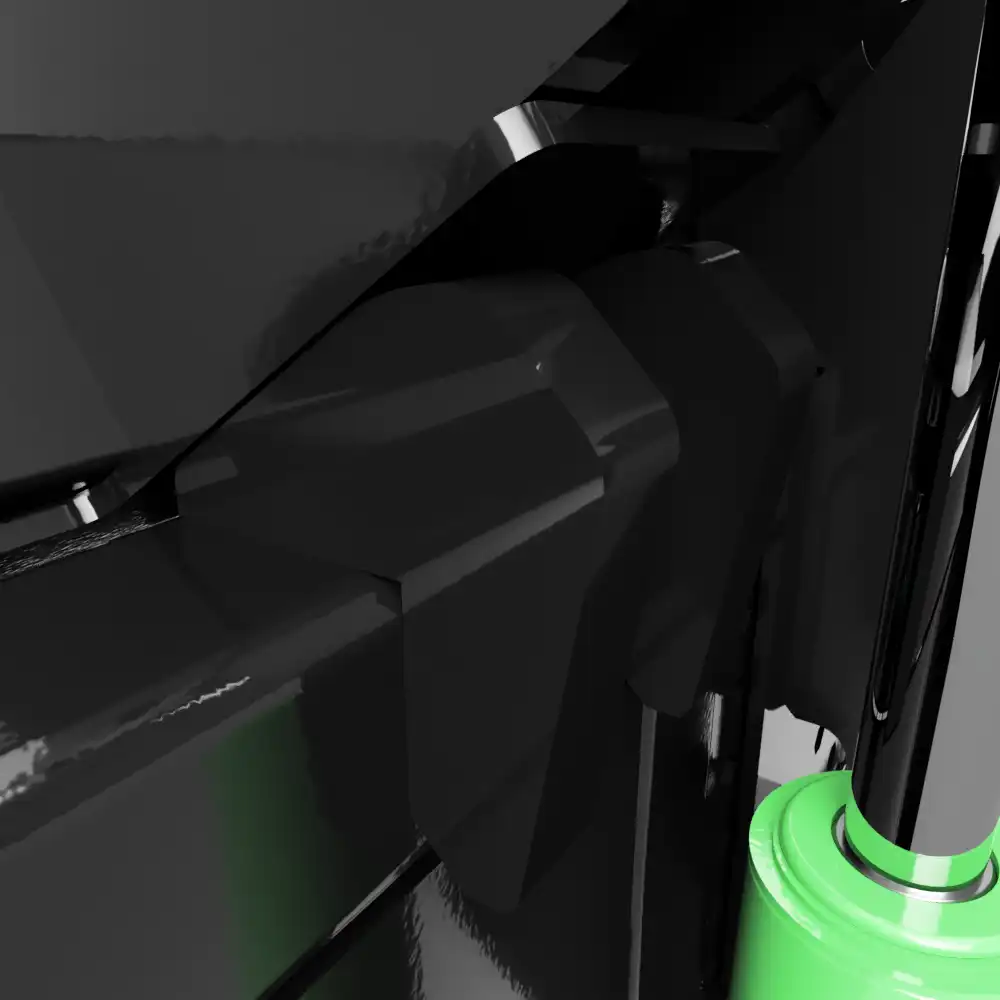

Motion stops on claw
Whether it is up, or whether it is down. Heavy plate stops to protect the cylinders from excessive forces. We know operators.

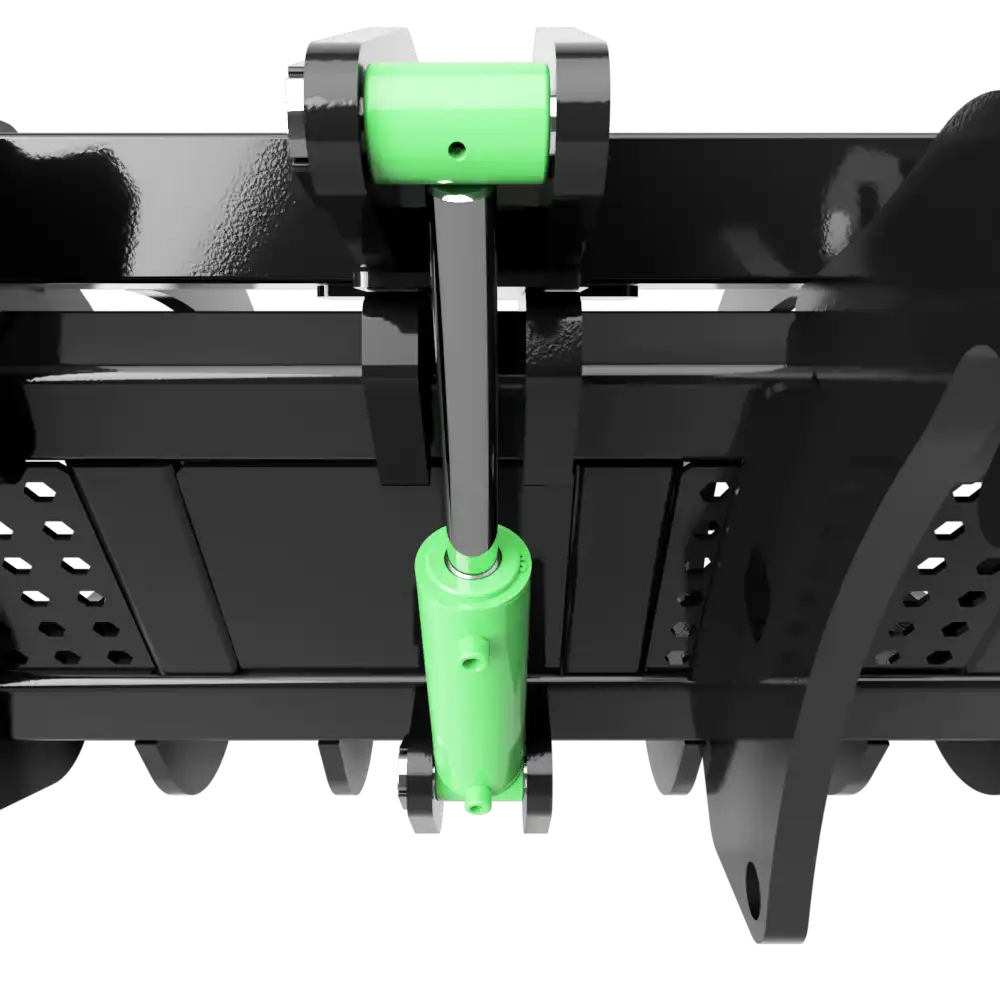

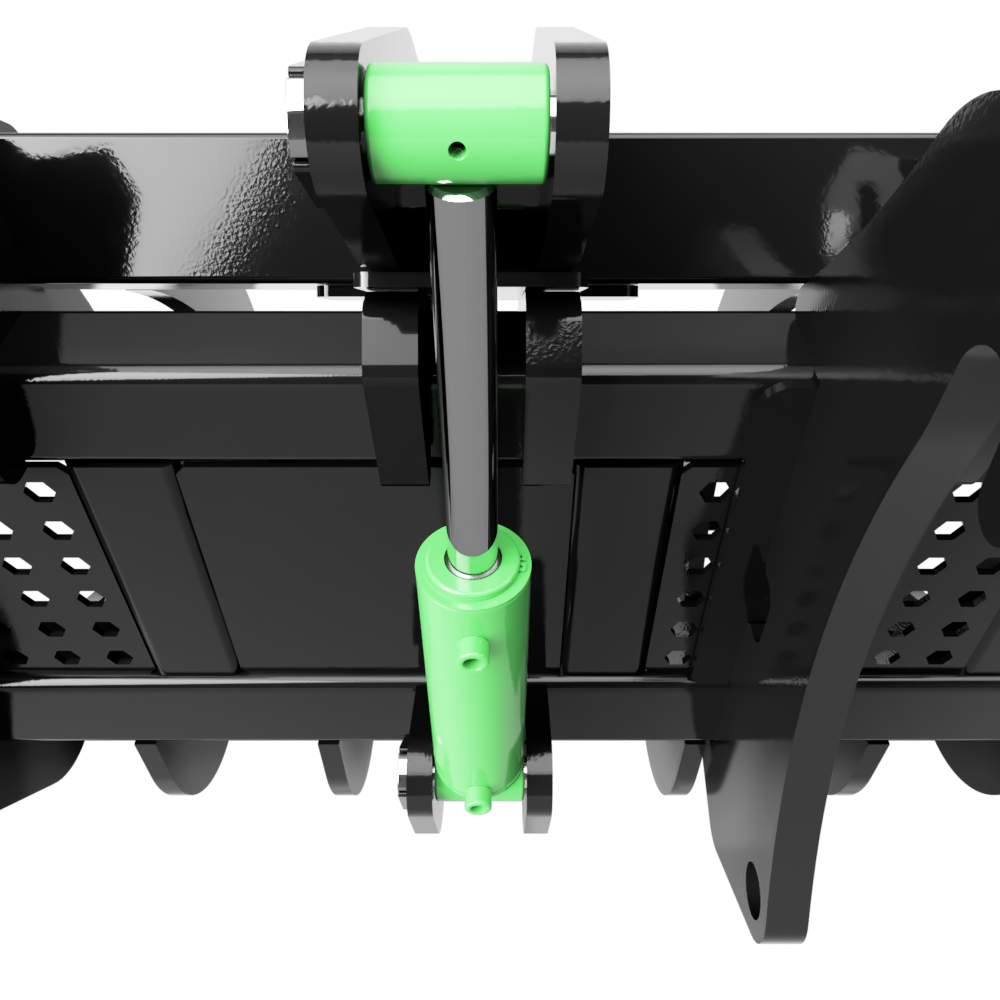

Locally made hydraulic cylinders
Locally Made and supported Hydraulic Cylinders. Made tough for harsh operating conditions and easily serviceable with parts available from local suppliers.
100% Australian Made and Fabricated
100% Manufactured by Sturgeon Equipment in our Hamilton Facility to the highest quality standards. Only Aussie Made!
Videos in Action
Bisalloy 450 Steel Teeth
Bizalloy 450 grade steel teeth that offer long-lasting performance.
Bisalloy 450 Steel Teeth
Bizalloy 450 grade steel teeth that offer long-lasting performance.
Bisalloy 450 Steel Teeth
Bizalloy 450 grade steel teeth that offer long-lasting performance.
Bisalloy 450 Steel Teeth
Bizalloy 450 grade steel teeth that offer long-lasting performance.
