Description
Specifications
| SHBFSWL-418ISO | |
|---|---|
| LOADER HITCH: | ISO/HI-VIS |
| TINES: | 4 |
| WEIGHT: | 290Kg |
| DIMENSIONS: | 1830 X 1500 X 1800 |
| CAPACITY: | 2500Kg |
| SHBFSWL-418CTIT | |
|---|---|
| LOADER HITCH: | CAT IT |
| TINES: | 4 |
| WEIGHT: | 285Kg |
| DIMENSIONS: | 1830 X 1500 X 1800 |
| CAPACITY: | 2500Kg |
| SHBFSWL-424ISO | |
|---|---|
| LOADER HITCH: | ISO/HI-VIS |
| TINES: | 4 |
| WEIGHT: | 330Kg |
| DIMENSIONS: | 1830 X 1500 X 2400 |
| CAPACITY: | 2500Kg |
| SHBFSWL-424CTIT | |
|---|---|
| LOADER HITCH: | CAT IT |
| TINES: | 4 |
| WEIGHT: | 325Kg |
| DIMENSIONS: | 1830 X 1500 X 2400 |
| CAPACITY: | 2500Kg |
| SHBFSWL-518ISO | |
|---|---|
| LOADER HITCH: | ISO/HI-VIS |
| TINES: | 5 |
| WEIGHT: | 350Kg |
| DIMENSIONS: | 1830 X 1500 X 1800 |
| CAPACITY: | 3500Kg |
| SHBFSWL-518CTIT | |
|---|---|
| LOADER HITCH: | CAT IT |
| TINES: | 5 |
| WEIGHT: | 345Kg |
| DIMENSIONS: | 1830 X 1500 X 1800 |
| CAPACITY: | 3500Kg |
| SHBFSWL-524ISO | |
|---|---|
| LOADER HITCH: | ISO/HI-VIS |
| TINES: | 5 |
| WEIGHT: | 410Kg |
| DIMENSIONS: | 1830 X 1500 X 2400 |
| CAPACITY: | 3500Kg |
| SHBFSWL-524CTIT | |
|---|---|
| LOADER HITCH: | CAT IT |
| TINES: | 5 |
| WEIGHT: | 405Kg |
| DIMENSIONS: | 1830 X 1500 X 2400 |
| CAPACITY: | 3500Kg |
Key Features and Benefits
- Heavy tube frame construction
- German Made SHW 1250mm Conus 2 Tines
- Heavily gusseted base tube
- Safety feet as standard
- Heavy profile cut pickup lugs
- Polyurethane Marine Grade Paint Finish
- 100% Australian Made and Fabricated

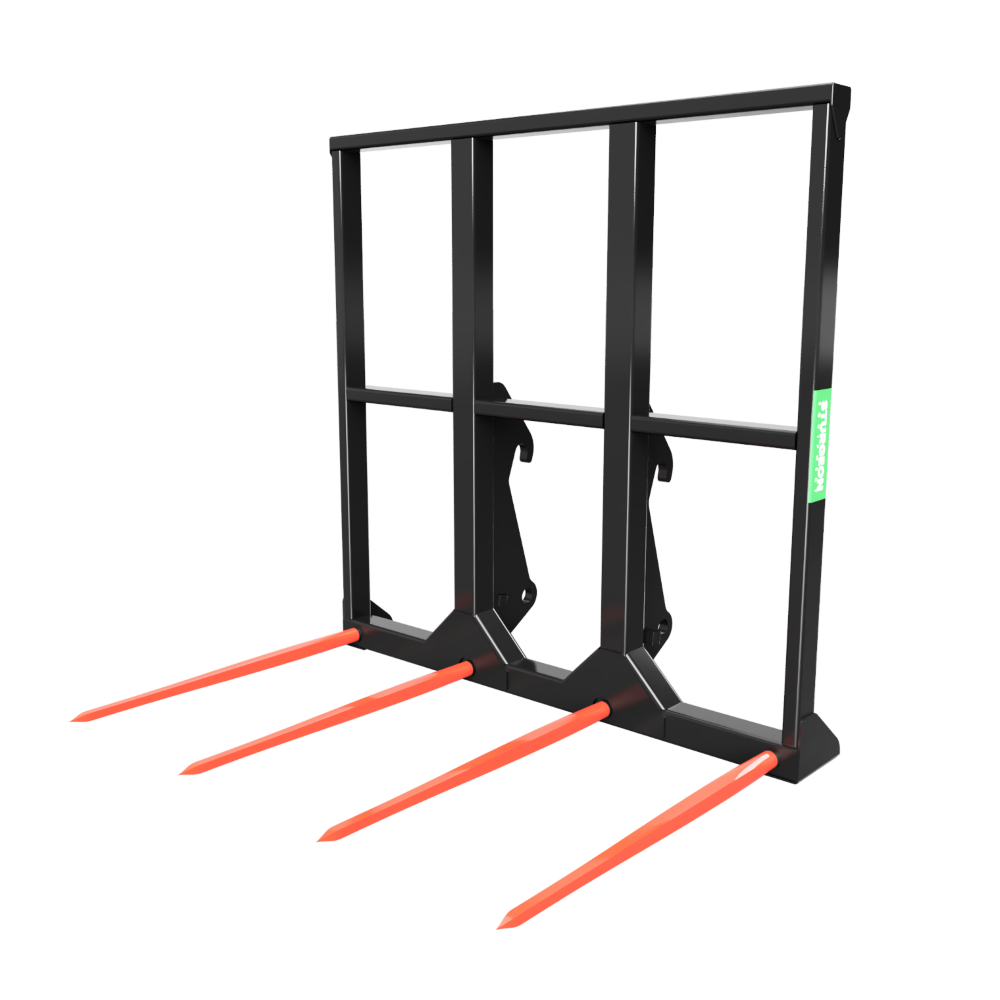

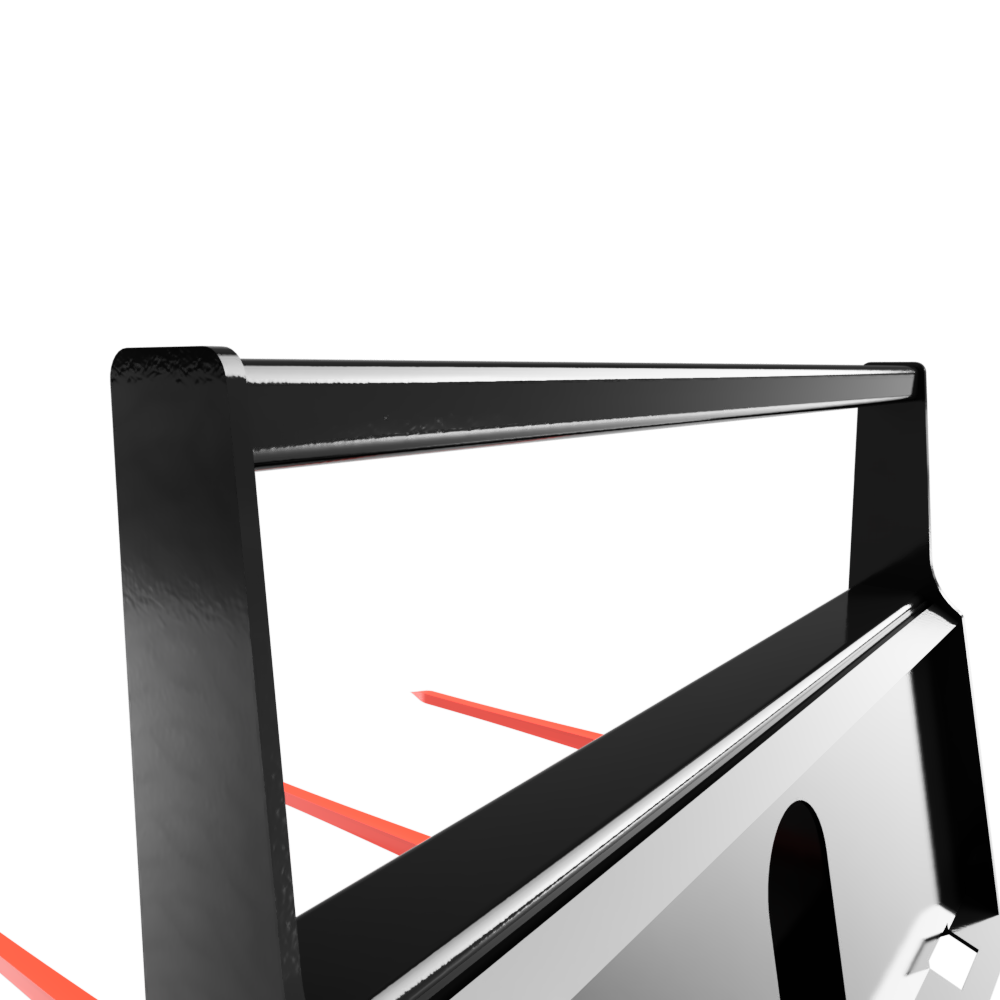

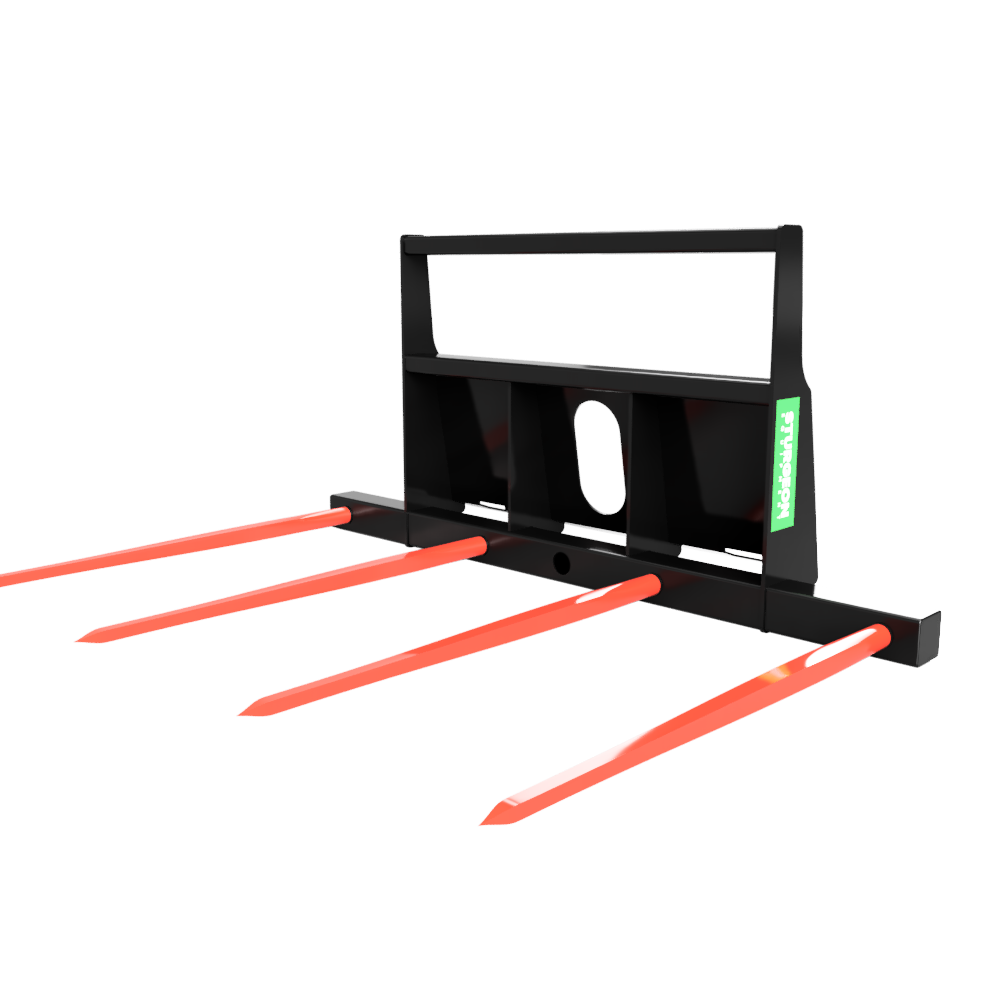

Heavy tube frame construction
Fabricated from 6mm thick tube framework, you have got a framework that you can rely on. Every living moment.

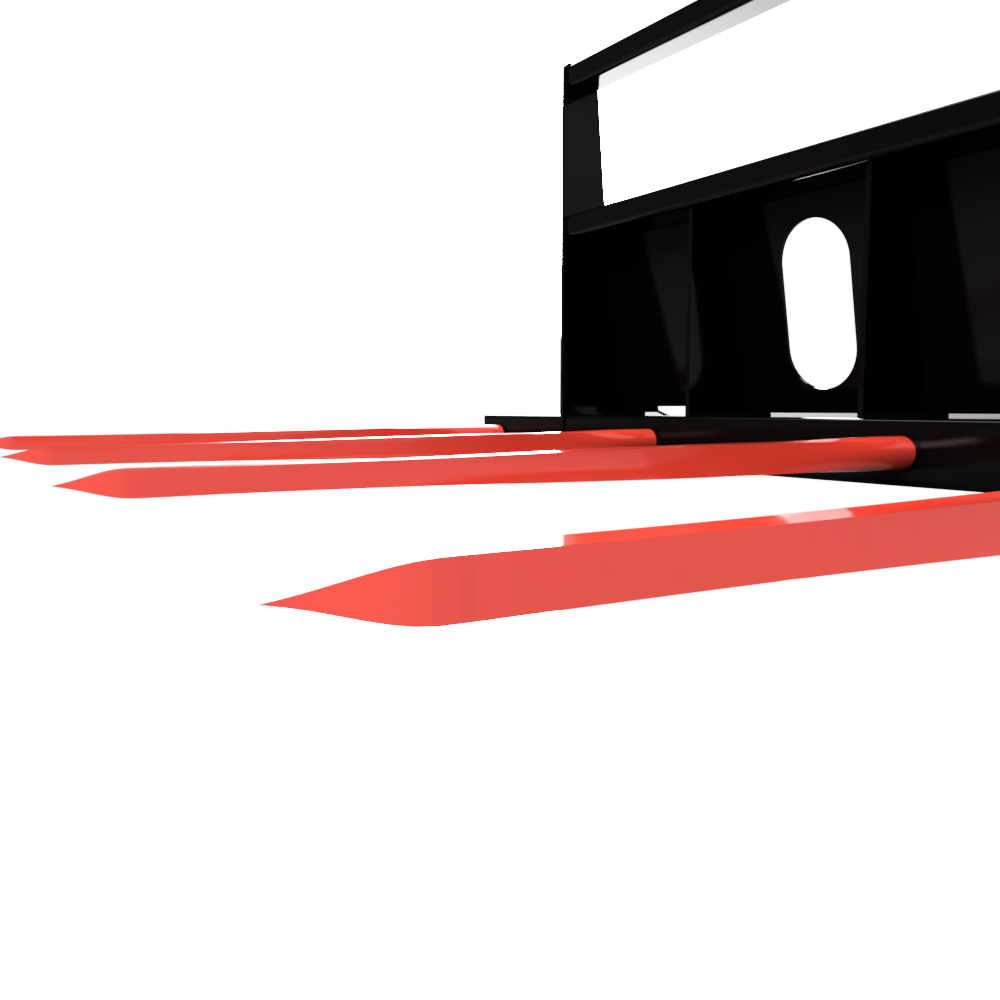

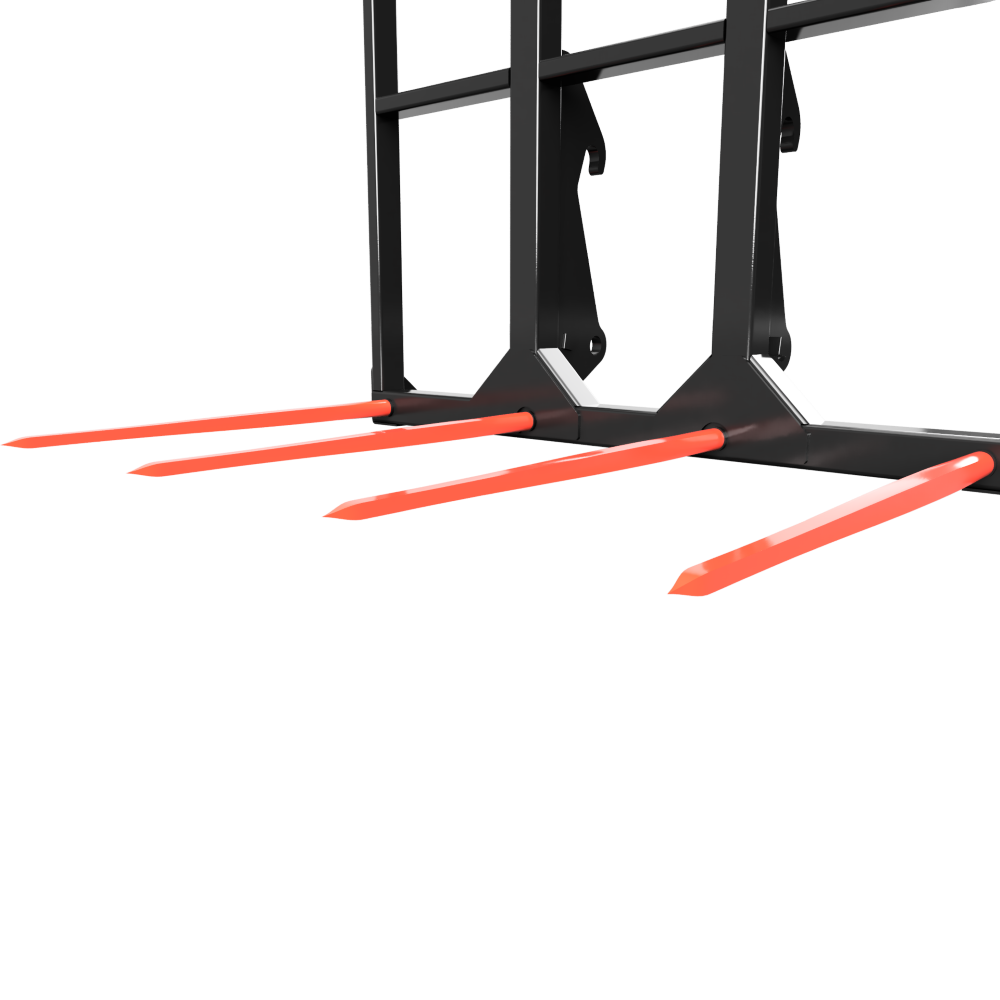

German Made SHW 1250mm Conus 2 Tines
The tines take it all. So, we only use the highest quality, SHW forged spring steel tines. Made in Germany.

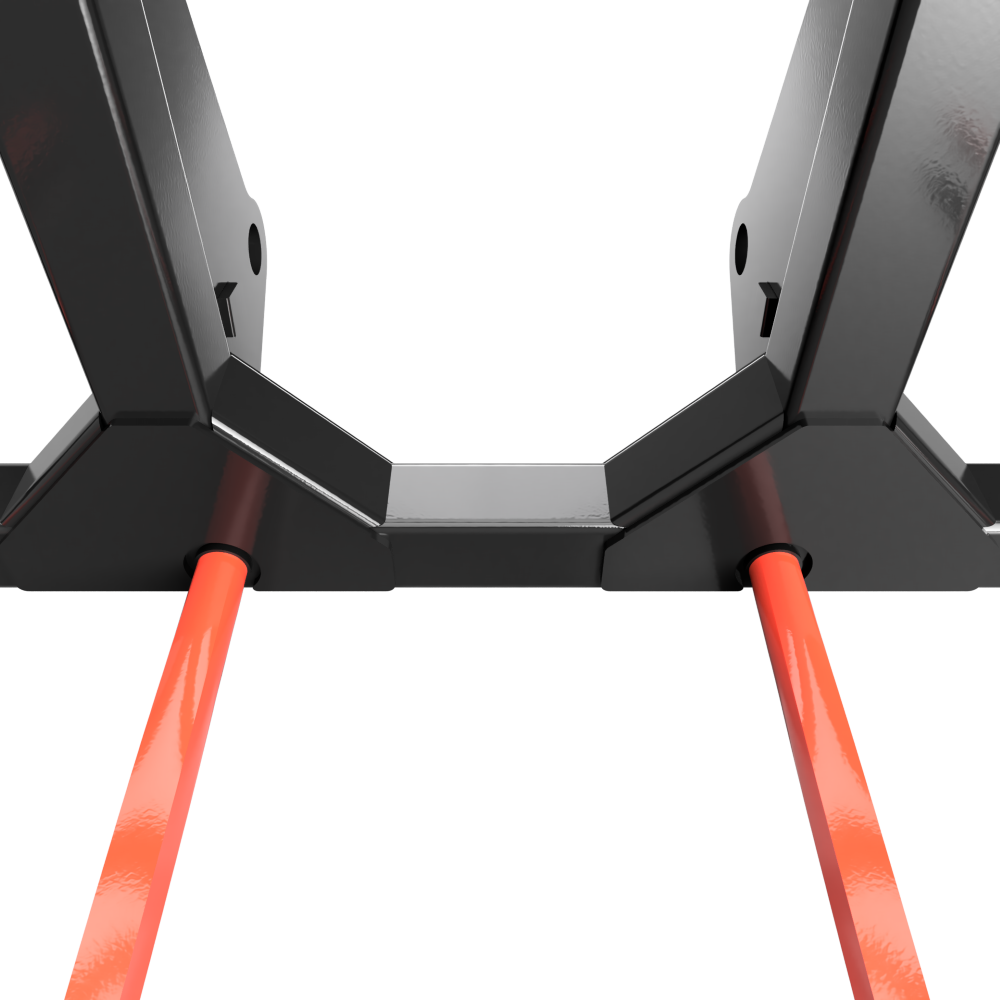

Heavily gusseted base tube
Wheel Loaders are very powerful machines. We put extra strengthening plates and gussets on the base tube for higher load capacity.

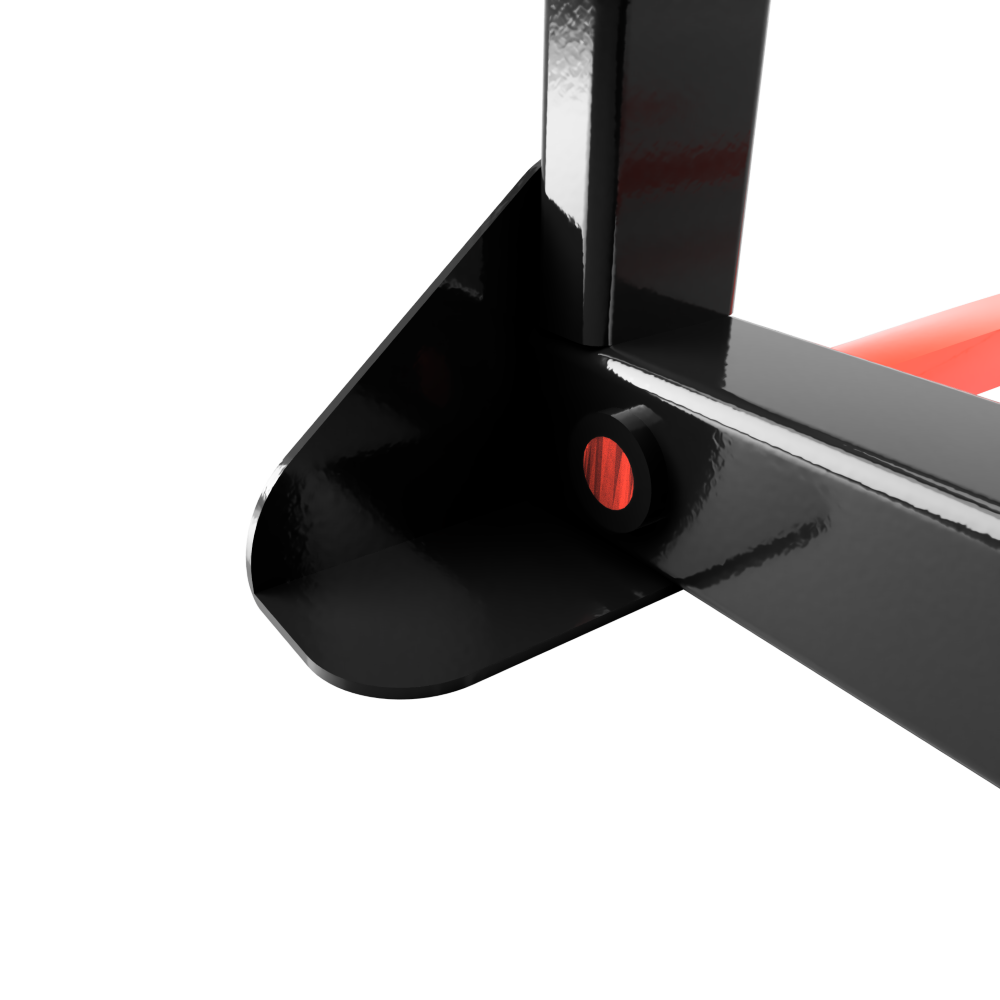

Safety feet as standard
Safety is absolute paramount when working with attachments. When not in use, this frame will never fall over. We know it.

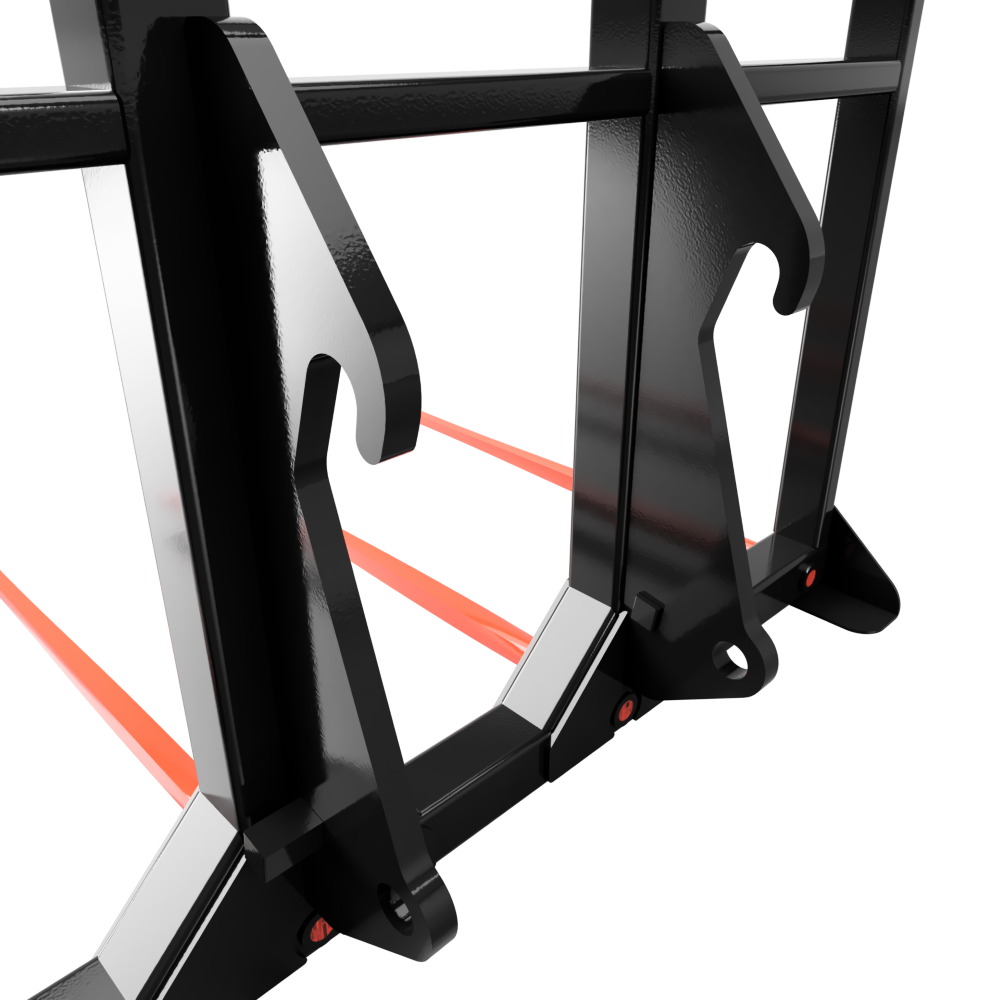

Heavy profile cut pickup lugs
We won’t settle for what everybody else does. We make our pickup lugs from thick, high-grade plate that will last the distance. So you don’t have to.

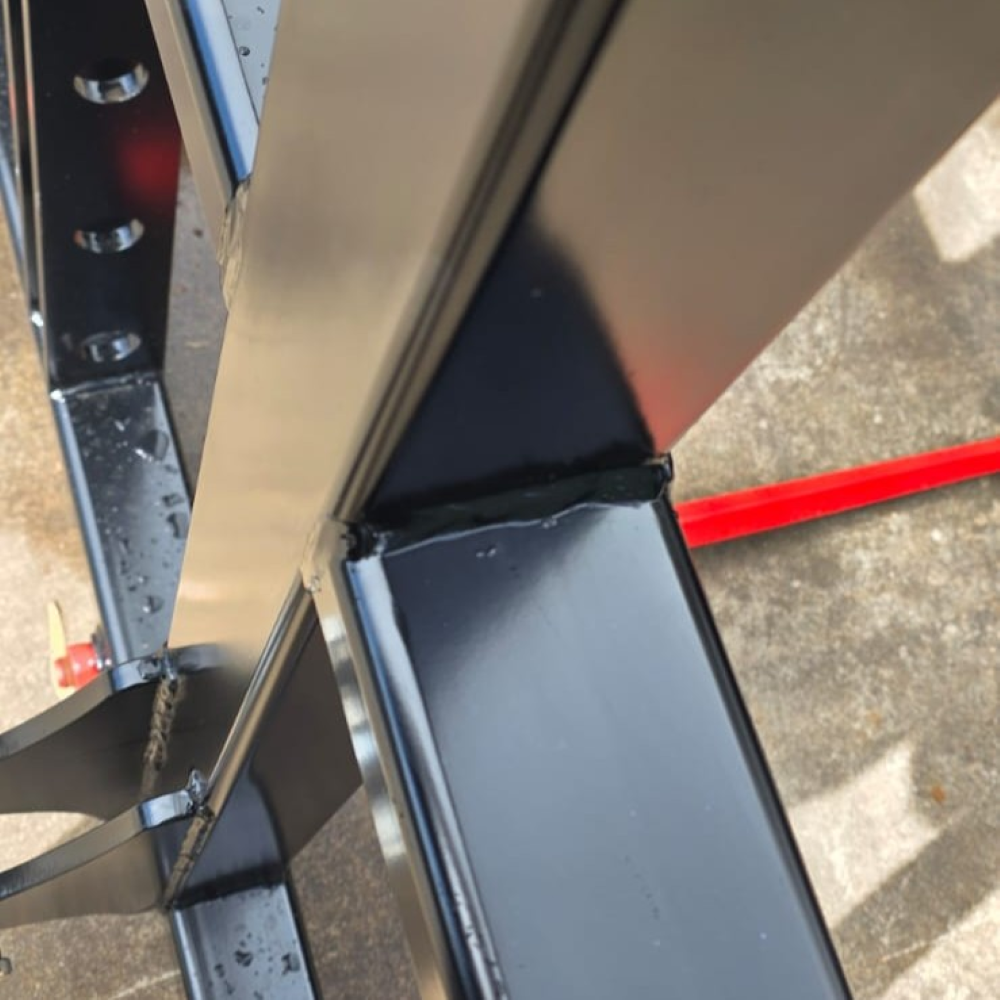

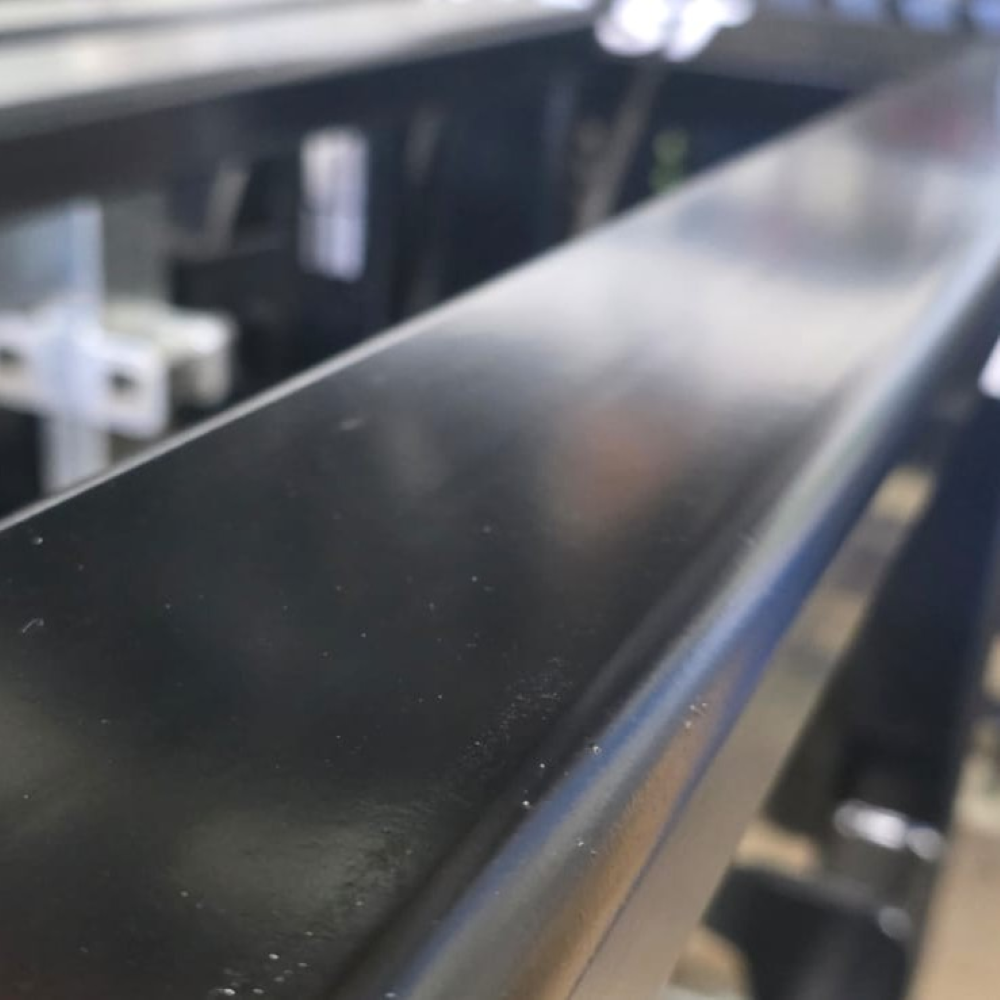

Polyurethane Marine Grade Paint Finish
Not your average paint. We believe in quality finishes, and polyurethane paint is definitely one of them. Look the goods every single day.
100% Australian Made and Fabricated
100% Manufactured by Sturgeon Equipment in our Hamilton Facility to the highest quality standards. Only Aussie Made!
Videos in Action
Bisalloy 450 Steel Teeth
Bizalloy 450 grade steel teeth that offer long-lasting performance.
Bisalloy 450 Steel Teeth
Bizalloy 450 grade steel teeth that offer long-lasting performance.
Bisalloy 450 Steel Teeth
Bizalloy 450 grade steel teeth that offer long-lasting performance.
Bisalloy 450 Steel Teeth
Bizalloy 450 grade steel teeth that offer long-lasting performance.
Customisable Features
PRODUCTS CUSTOMERS

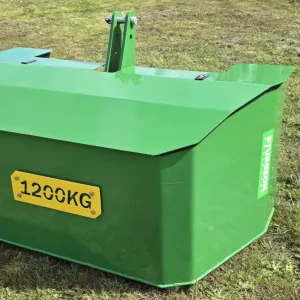

Front linkage Toolbox Counterweight
